October 23, 2025
Computers are not magic, and we don’t have any standard or revealed architecture for designing computers. Today, we use the Von Neumann architecture (especially in IBM-based systems) because it’s a good design and allows us to create portable and cross-platform applications.
In this post, we’ll explore the differences between Von Neumann and Harvard architectures and also explain what Von Neumann architecture actually is.
What is Architecture?

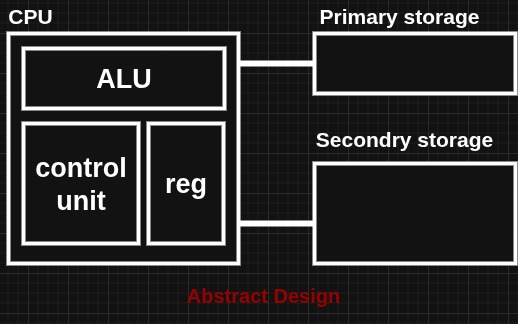

In modern computers, three things are necessary:
- CPU – executes instructions
- RAM – primary storage for temporarily storing data and instructions
- Storage – secondary storage for long-term data storing
The CPU has a cycle for executing instructions:
FETCH → DECODE → EXECUTE1. Fetch: Fetch the command from primary storage, for example add ax, 3.
2. Decode: The CPU decodes the fetched command (the Control Unit handles this part).
3. Execute: Finally, the CPU executes the command (for instance, ax = ax + 3).
This whole process defines what we call computer architecture — the way the CPU, memory, and storage interact to execute programs.
Von Neumann Architecture
In Von Neumann architecture, a single memory is used to hold both data and instructions. We just allocate different parts of the same memory for each.
Advantages:
- Only one bus is needed for both data and instructions.
- Lower overall cost due to a unified memory system.
Disadvantages:
- Lower speed because both data and instructions share the same bus.
- Less security, as storing data and instructions together can lead to attacks like buffer overflow.
Harvard Architecture
Harvard architecture uses separate memory spaces and buses for data and instructions, which improves speed and security at the cost of complexity.
Advantages:
- Faster performance due to separate buses.
- Reduced risk of code injection attacks.
Disadvantages:
- Increased hardware complexity and cost.
- Possible unused memory since data and instruction spaces are fixed.
Conclusion
Both architectures have their own advantages and disadvantages:
- Von Neumann is simpler and cheaper, making it ideal for most general-purpose computers and systems where cost and simplicity matter.
- Harvard provides higher speed and better security, making it suitable for microcontrollers, DSPs, and embedded systems.
Understanding the difference between them helps us appreciate how computer designers balance cost, complexity, and performance in modern computing systems.
See also: Wikipedia - Von Neumann Architecture, Wikipedia - Harvard Architecture
